The successful one
EP 5500 SHARK
Mobile shredder with five requirement-optimized rotor variants
Since the SHARK shredder was launched onto the market, we have sold more than 600 of this proven fast-runner series worldwide. The shredding machine has been developed continuously further in close cooperation with our users. Today, the high-performance shredder is available in the fifth generation with five requirement-optimized rotor versions. These are even better equipped to meet the different market requirements and wide range of initial materials and convince with their high-performance capability and power.
Overview
Basic machine
Rotor versions/Applications
Machine options
Technical data
Spare & wearable parts
contact persons
Overview
Preparation of a wide range of biological raw materials as required by an innovative shredding system up to marketable premium products such as potting soil, fertilizer, wood chips, etc.
Excellent performance and economy
Mobile, strong but compact chassis, with transport dimension of just 9.95 m in length
Unique service accessibility due to swing-out discharge belt
Figures / Data / Facts
520HP
Engine performance in diesel version
ECE Stufe V
(with diesel engine)
Up to 240 m3/h
Throughput rate for green waste
9,95m
Compact transport dimension
approx. 19000kg
Weight depending on the machine equipment
80 km/h
Maximum speed depending on the tractor
Zahlen/Daten/Fakten
520PS
Motorleistung
(MAN-Dieselversion)
ECE Stufe V
Abgasnorm
(bei MAN-Dieselversion)
bis 240 m3/h
Durchsatz
bei Grünschnitt
9,95m
kompaktes
Transportmaß
ca. 19000kg
Gewicht
(je nach Maschinenoptionen)
80 km/h
zulässige Höchstgeschwindikeit abhängig von Zugmaschine
Basic machine
All EP 5500 processing machines are delivered with MAN engines of the latest generation and exhaust gas class as standard. We can offer a much wider range also as far as the drives and variety of versions are concerned. A three-axle, caterpillar or stationary version is also possible where relevant, and a full electric propulsion is becoming increasingly popular. In addition, we offer a large number of other useful equipment options to cover all customer-specific requirements and enable economical and convenient working.
Previous
Next
Shark 5 – V1
Finest results
Shark 5 – V2
Robust and fine
Shark 5 – V3
The talented all-rounder
Shark 5 – V4
The universal one
Shark 5 – V5
Master of biomass processing
The highlights:
More performance & efficiency
- Large rotor with 110 cm diameter (30% more screen basket surface area and increased material quality and throughput than the previous version)
- Infinitely variable motor speeds selectable
- Effective power transmission thanks to power belt drive
- Long feed trough with clear material feed
- Robust, low-wear roller floor
- Aggressive feed roller – can be raised hydraulically
- Large feed opening of 90 cm
Die Highlights:
mehr Leistung & Wirtschaftlichkeit
- Großer Rotor mit 110 cm Durchmesser (30% mehr Siebkorbfläche sowie gesteigerte
- Materialqualität und Durchsatz als Vorgängerversion)
- Stufenlose Motordrehzahlen wählbar
- Effektive Kraftübertragung durch Powerband-Antrieb
- Lange Einfüllwanne mit übersichtlicher Materialaufgabe
- Robuster verschleißarmer Rollboden
- Aggressive Einzugswalze – hydraulisch anhebbar
- Große Einzugsöffnung von 90 cm
Increased quality
- Flails in combination with comb-like counter blades ensure the finest material results.
- Three-part sensor-controlled secondary shredding
- Various re-shredding flaps for exact final grain size can be changed quickly
- A wide range of smart equipment options available
gesteigerte Qualität
- Schlegel in Kombination mit kammartigen Gegenschneiden sorgen für feinste Materialergebnisse.
- dreiteilige sensorgesteuerten Nachzerkleinerung
Verschiedene Nachzerkleinerungsklappen für exakte Endkörnung schnell wechselbar - Eine Vielzahl an pfiffigen Ausstattungsoptionen erhältlich
comfortable
- Modern machine control system with touchscreen display and unique radio remote control. All machine functions and setup settings can be conveniently controlled by radio
komfortabel
- Moderne Maschinen-Steuerung mit Touchscreen-Display und einzigartigem Funk-Handsender. Sämtliche Maschinenfunktionen und Setup-Einstellungen komfortabel per Funk steuerbar
better service
- Extremely maintenance-friendly machine thanks to swing-away conveyor
- Plenty of space for fast & safe machine servicing. Impressive accessibility.
- Tools and wear parts can be replaced quickly and easily
- Fault indication via display
- Diesel consumption readout (average per operating hour)
- Possibility to process even more data via optional telemetry (WILLMA).
besserer Service
- Extrem wartungsfreundliche Maschine durch wegschwenkbares Förderband
- Viel Raum für schnellen und sicheren Maschinenservice. Zugänglichkeit die begeistert.
- Werkzeuge und Verschleißteile bequem und schnell austauschbar
- Fehleranzeige über Display
- Auslesung Dieselverbrauch (Durchschnitt je Betriebsstunde)
- Möglichkeit über optionale Telemetrie (WILLMA) noch mehr Daten zu verarbeiten.
Further technical refinements
- Intelligent hydraulic system with many options
- Optimum interaction between main control and hydraulics
- Environmentally friendly exhaust stage 5 with diesel particulate filter
- Intelligent cooling concept via spiral fan
- Proportionally controlled feed roller and roller floor (load-dependent AIC)
- Material discharge via rubber conveyor belt 3.8, 4.5 or 5.0 m discharge height selectable (4.5 m = direct truck loading)
- Rubber discharge conveyor hydraulically foldable for transport, working and service position
weitere technische Finessen
- Intelligentes Hydrauliksystem mit vielen Optionen
- Optimales Zusammenspiel zwischen Hauptsteuerung und Hydraulik
- Umweltschonende Abgasstufe 5 mit Dieselpartikelfilter
- Intelligentes Kühlkonzept über Wendelüfter
- Einzugswalze und Rollboden proportionalgesteuert (lastabhängig-AIC)
- Materialaustragung per Gummitransportband 3,8, 4,5 oder 5,0 m Abwurfhöhe wählbar (4,5 m = direkte LKW-Beladung)
- Gummiaustragsband hydraulisch klappbar für Transport-, Arbeits- und Servicestellung
Rotor versions/Applications
Many different materials can be processed exactly as required, thanks to the unique shredding systems of the EP series. In both their main area of use (namely composting) and the increasingly important biomass application, the Sharks have also become successfully established in the field of biogas substrate treatment. Furthermore, the “Willibald Sharks” are also used successfully for bark and peat processing, as well as for making wood chips from left-over and old wood materials (e.g. pallets) for use in thermal recycling. Choosing the type of Shark to suit your needs will perfect the shredding result in line with your individual material requirements. Five customized variants are available:
In this modification, a rotor with 48 fine flails operates in combination with rakes. This achieves finest material results. Where exact fine grain is required, version 1 is the right decision.
Green waste, maize silage, beet. Output of up to 240 m3/h, e.g. for green waste.
Suitability for materials
5/5
Perfect match
Green waste
4/5
Very suitable
Maize
Manure
4/5
Very suitable
Wood-like biomass
Old & pallet wood
Bark
Edit Template
Suitability for materials
5/5
Perfect match
Green waste
4/5
Very suitable
Maize
Manure
4/5
Very suitable
Wood-like biomass
Old & pallet wood
Bark

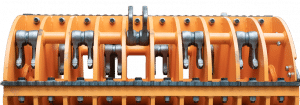

This strong rotor version with 40 flails and more stable rakes due to the reduced number of flails enables an optimum compromise between robustness and material fineness. Version 2 is the one you want when you need decent fine grain.
Bark and organic waste. Throughput of up to 200 m3/h, e.g. for horse manure.
Suitability for materials
5/5
Perfect match
Maize
Manure
4/5
Very suitable
Green waste
3/5
Suitable
Wood-like biomass
Old- and pallet wood
Bark

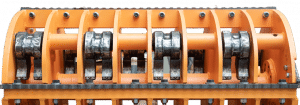

Here, a rotor operates with 16 powerful double flails. These are equipped with 32 quickly interchangeable tips. The universally usable shredding system of the Shark 5 in version 3 offers good, well-balanced results in almost all areas of application.
Root wood, demolition wood. Output up to 210m3/h, e.g. for demolition wood.
Suitability for materials
5/5
Perfect match
Wood-like biomass
Old- and pallet wood
4/5
Very suitable
Maize
Manure
4/5
Very suitable
Bark
3/5
Suitable
Green waste

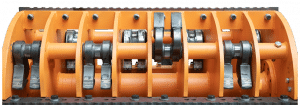

Alternatively to version 3, 32 massive single flails can also be used. The SHARK shredding system in version 4 offers longer life times and also good results for a wide range of materials to be shredded.
Pallets, waste wood. Result up to 230 m3/h e.g. for pallets.
Suitability for materials
5/5
Perfect match
Wood-like biomass
Old- and pallet wood
4/5
Very suitable
Maize
Manure
4/5
Very suitable
Bark
Wood-like biomass
Old- and pallet wood
3/5
Suitable
Green waste

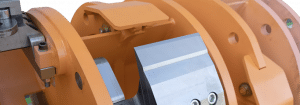

A rotor with 10 fixed shredder tools with chopping qualities ensures excellent results in biomass processing. An innovative safety concept against contaminants also convinces.
Solid wood and logs. Quantities up to 150 m3/h, e.g. for logs.
Suitability for materials
5/5
Perfect match
Trunks and trunk wood
4/5
Very suitable
Wood-like biomass
Old- and pallet wood
Bark
4/5
Very suitable
Bark
Wood-like biomass
Old- and pallet wood
Machine options
Rubber discharge belt
Three versions with selectable discharge height of 3.8 m, 4.5 m or 5.0 meters for continuous discharging of the shredded materials into windrows or directly onto the truck.
Reversible fan
Important basic equipment item which enables cyclic cleaning of the radiator surface to remove attracted dust.
Hydraulic quick-release axle extractor
For convenient extraction of the flail axles from the rotor for quick tool changes.
Crawling speed drive
Enables continuous discharge of the shredded materials in closed windrows. The movement is driven by a friction wheel on two tires, controlled by control panel or remote control.
Central lubrication system
Supplies all lubricating points at adjustable intervals with the required exact dose of grease.
Radio remote control
Enables convenient and reliable operation of all machine functions and basic settings such as the feeding speed from the feeding vehicle.
Hydraulic support leg
Enables convenient height adjustment of the drawbar by touch display or hand-held radio transmitter.
Filling hopper extension
Extends the filling trough by approx. 110 cm and can be folded into the transport position on the control panel or by radio remote control.
Neodymium magnet roller with collection bin
Metal fragments contained in the shredded material are attracted by the powerful head roller magnet and gathered in a collection bin.
Neodymium overhead belt magnet
Any metal parts are separated from the end material and discharged to the side. This option is only available for three-axle vehicles.
Hydraulic discharge flap
Ensures exact loading of the processed materials directly from the conveyor belt into the transport vehicle.
Water spray system
Prevents dust development both on the material feeder and on the conveyor belt. An ideal option when shredding pallets for example.
LED work light (4 pieces)
The LEDs illuminate the work area perfectly. Ideal for use in shift operation.
Board wall elevation on both sides
A mechanically or hydraulically folding board wall elevation increases the filling trough volume and brings added convenience to your work. The board walls can also be folded for transport.
Additional tank large or small (360 l or 195 l)
For trouble-free handling of large assignments without stopping for refueling. The large additional tank increases the fuel capacity to up to 860 liters.
Towing eye shoe
Ideal for fast marshaling of the shredder with the feeding vehicle.
WILLMA service tool
All important machine data in real time at a glance for fast servicing and greater cost effectiveness
Special paintwork
At a surcharge, we will deliver your new WILLIBALD shredder in the RAL color of your choice.
Bio-oil
In order to meet special environmental requirements, the shredding machine is also available with biodegradable hydraulic oil.
Optical quantity measurement
Enables the recording of the shredded material including storing of volume, material and customer data. A fan unit is available additionally for the optical quantity measurement.
Crawler chassis
Instead of 2-axle chassis. This enables mobile machine positioning without a towing vehicle is possible. For certain ground conditions
also better suited.
3-axle chassis
Can be selected instead of the 2-axle chassis. Required for certain equipment options or if the total machine weight of 19 tonnes is exceeded.
Various post-shredding flaps
Different sizes of screening hoppers are available for installation depending on the requirements for the desired end product (final grain grade).
Belt safety package
The sensor-controlled safety package allows the discharge belt to be swung away when the rotor is at a standstill. In addition, incorrect assembly of the safety bolts is not possible. This additionally protects users and material.
DuoMatic quick coupling
Serves for quick connection of the truck’s pneumatic brake system to the brake system of the trailer.
Compressed air connection
For service and cleaning work on the machine with practical hose reel.
Set of alloy complete wheels
A set of four complete wheels and alloy rims – light and attractive.
Engine upgrade
For increasing the performance of the basic MAN engine from 480 HP to 520 HP.
Warranty extension MAN engine
For 3,000 operating hours, maximum two years.
Open for new ideas
If you have special requirements for your shredder which the standard machine does not offer, then just contact us and we will help you to find a solution. This openness has always been one of our strong points.
Technical data
The specified parameters refer to the standard machine. Dimensions and specifications can differ due to equipment options. May not be reprinted or reproduced without our consent.
Download
Spare & wearable parts
The basis for a correct spare parts supply is the three-language spare parts list compiled individually for every WILLIBALD machine. If you do not have this, you can order it from us as a PDF file free of charge by stating the appropriate machine number (visible on the type plate of the W°-machine).
In order for us to provide you with the right spare parts at all times, we would ask you generally to state the following information with all inquiries and orders:
- The W°-machine number as on the machine type plate
- Spare parts numbers with article name and required quantity
- Desired shipment type: Express, hauler, air freight, mail, sea freight, collection, etc.
The exact delivery and invoice address of the recipient.
This guarantees fast and correct shipment of spare parts and avoids unnecessary returns. Thank you Machine salesfor your kind attention.
